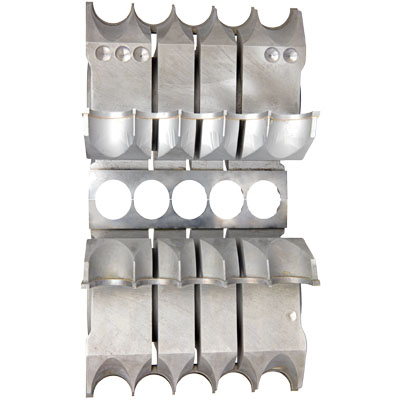

1. Can simultaneously manufacture several rods & Dowels.

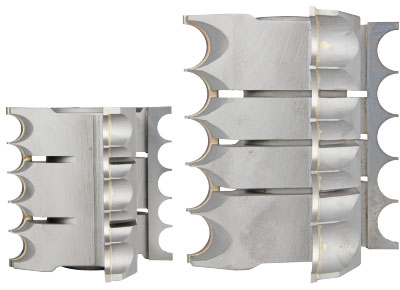

2. Brazed Cutter for Rod, Dowel Rod suitable for Four Side Moulder and Round Rod Milling Machine.
3. Because Knives are made by tungsten carbide. The durability is reliable.
4. Brazed Cutter for Rod, Dowel Rod can simultaneously manufacture several wooden rods. The rage of a rod diameter is between 4 – 30 mm.
|

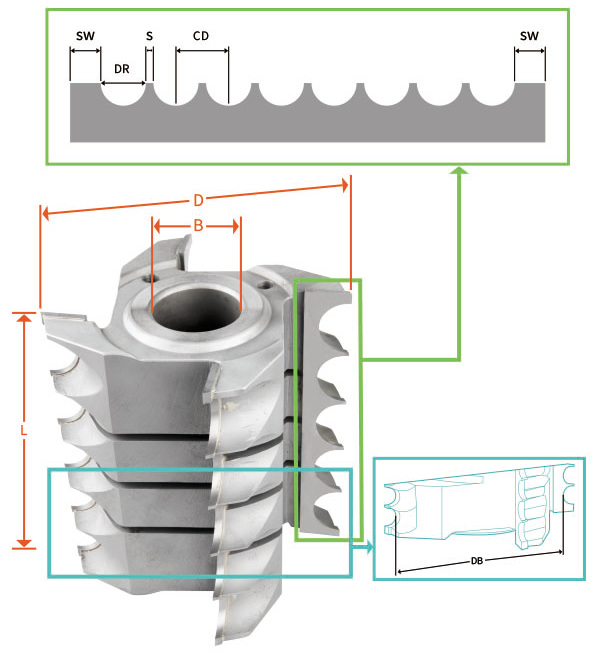

Diameter (D) |
Length (L) |
Bore (Bore) |
Diameter of Rod Buttom (DB) |
T |
Side Width (SW) |
The Diameter of Rod (DR) |
Span (S) |
Pitch (CD) |
Quantity of Rod or Dowel |
|---|---|---|---|---|---|---|---|---|---|
|
110 mm |
96 mm |
30 mm |
104 mm |
4 |
4 mm |
4 mm |
1.0 mm |
5 mm |
18 |
|
110 mm |
96 mm |
30 mm |
103 mm |
4 |
4 mm |
5 mm |
1.0 mm |
6 mm |
15 |
|
110 mm |
97 mm |
30 mm |
102 mm |
4 |
4 mm |
6 mm |
1.0 mm |
7 mm |
13 |
|
110 mm |
102 mm |
30 mm |
101 mm |
4 |
4 mm |
7 mm |
1.0 mm |
8 mm |
12 |
|
110 mm |
96 mm |
30 mm |
100 mm |
4 |
4 mm |
8 mm |
1.0 mm |
9 mm |
10 |
|
110 mm |
96 mm |
30 mm |
99 mm |
4 |
4 mm |
9 mm |
1.0 mm |
10 mm |
9 |
|
110 mm |
97.5 mm |
30 mm |
98 mm |
4 |
4 mm |
10 mm |
1.0 mm |
11.5 mm |
8 |
|
110 mm |
93 mm |
30 mm |
97 mm |
4 |
4 mm |
11 mm |
1.5 mm |
12.5 mm |
7 |
|
110 mm |
100 mm |
30 mm |
96 mm |
4 |
4 mm |
12 mm |
1.5 mm |
13.5 mm |
7 |
|
110 mm |
92.5 mm |
30 mm |
95 mm |
4 |
4 mm |
13 mm |
1.5 mm |
14.5 mm |
6 |
|
110 mm |
98.5 mm |
30 mm |
94 mm |
4 |
4 mm |
14 mm |
1.5 mm |
15.5 mm |
6 |
|
110 mm |
88 mm |
30 mm |
93 mm |
4 |
4 mm |
15 mm |
1.5 mm |
16.5 mm |
5 |
|
110 mm |
93 mm |
30 mm |
92 mm |
4 |
4 mm |
16 mm |
1.5 mm |
17.5 mm |
5 |
|
110 mm |
98 mm |
30 mm |
91 mm |
4 |
4 mm |
17 mm |
1.5 mm |
18.5 mm |
5 |
|
110 mm |
103 mm |
30 mm |
90 mm |
4 |
4 mm |
18 mm |
1.5 mm |
19.5 mm |
5 |
|
110 mm |
87.5 mm |
30 mm |
89 mm |
4 |
4 mm |
19 mm |
1.5 mm |
20.5 mm |
4 |
|
110 mm |
93 mm |
30 mm |
88 mm |
4 |
4 mm |
20 mm |
1.5 mm |
22 mm |
4 |
|
110 mm |
97 mm |
30 mm |
87 mm |
4 |
4 mm |
21 mm |
1.5 mm |
23 mm |
4 |
|
110 mm |
101 mm |
30 mm |
86 mm |
4 |
4 mm |
22 mm |
2.0 mm |
24 mm |
4 |
|
110 mm |
80 mm |
30 mm |
85 mm |
4 |
4 mm |
23 mm |
2.0 mm |
25 mm |
3 |
|
110 mm |
83 mm |
30 mm |
84 mm |
4 |
4 mm |
24 mm |
2.0 mm |
26 mm |
3 |
|
110 mm |
86 mm |
30 mm |
83 mm |
4 |
4 mm |
25 mm |
2.0 mm |
27 mm |
3 |
|
110 mm |
89 mm |
30 mm |
82 mm |
4 |
4 mm |
26 mm |
2.0 mm |
28 mm |
3 |
|
110 mm |
92 mm |
30 mm |
81 mm |
4 |
4 mm |
27 mm |
2.0 mm |
29 mm |
3 |
|
110 mm |
95 mm |
30 mm |
80 mm |
4 |
4 mm |
28 mm |
2.0 mm |
30 mm |
3 |
|
110 mm |
98 mm |
30 mm |
79 mm |
4 |
4 mm |
29 mm |
2.0 mm |
31 mm |
3 |
|
110 mm |
101 mm |
30 mm |
78 mm |
4 |
4 mm |
30 mm |
2.0 mm |
32 mm |
3 |
＊ Brazed Cutter for Rod, Dowel Rod are manufactured after ordering, please e-mail us for inquiring.
|
Diameter (D) |
Length (L) |
Bore (Bore) |
Diameter of Rod Buttom (DB) |
T |
Side Width (SW) |
The Diameter of Rod (DR) |
Span (S) |
Pitch (CD) |
Quantity of Rod or Dowel |
|---|---|---|---|---|---|---|---|---|---|
|
130 mm |
126 mm |
40 mm |
124 mm |
4 |
4 mm |
4 mm |
1.0 mm |
5.0 mm |
24 |
|
130 mm |
126 mm |
40 mm |
123 mm |
4 |
4 mm |
5 mm |
1.0 mm |
6.0 mm |
20 |
|
130 mm |
125 mm |
40 mm |
122 mm |
4 |
4 mm |
6 mm |
1.0 mm |
7.0 mm |
17 |
|
130 mm |
126 mm |
40 mm |
121 mm |
4 |
4 mm |
7 mm |
1.0 mm |
8.0 mm |
15 |
|
130 mm |
123 mm |
40 mm |
120 mm |
4 |
4 mm |
8 mm |
1.0 mm |
9 mm |
13 |
|
130 mm |
126 mm |
40 mm |
119 mm |
4 |
4 mm |
9 mm |
1.0 mm |
10 mm |
12 |
|
130 mm |
155 mm |
40 mm |
118 mm |
4 |
4 mm |
10 mm |
1.5 mm |
11.5 mm |
13 |
|
140 mm |
154 mm |
40 mm |
127 mm |
4 |
4 mm |
11 mm |
1.5 mm |
12.5 mm |
12 |
|
140 mm |
155 mm |
40 mm |
126 mm |
4 |
4 mm |
12 mm |
1.5 mm |
13.5 mm |
11 |
|
110 mm |
150 mm |
40 mm |
125 mm |
4 |
4 mm |
13 mm |
1.5 mm |
14.5 mm |
10 |
|
140 mm |
145 mm |
40 mm |
124 mm |
4 |
4 mm |
14 mm |
1.5 mm |
15.5 mm |
9 |
|
140 mm |
154 mm |
40 mm |
123 mm |
4 |
4 mm |
15 mm |
1.5 mm |
16.5 mm |
9 |
|
140 mm |
145.5 mm |
40 mm |
122 mm |
4 |
4 mm |
16 mm |
1.5 mm |
17.5 mm |
8 |
|
140 mm |
154.5 mm |
40 mm |
121 mm |
4 |
4 mm |
17 mm |
1.5 mm |
18.5 mm |
8 |
|
140 mm |
143 mm |
40 mm |
120 mm |
4 |
4 mm |
18 mm |
1.5 mm |
19.5 mm |
7 |
|
140 mm |
150 mm |
40 mm |
119 mm |
4 |
4 mm |
19 mm |
1.5 mm |
20.5 mm |
7 |
|
140 mm |
138 mm |
40 mm |
118 mm |
4 |
4 mm |
20 mm |
2.0 mm |
22.0 mm |
6 |
|
140 mm |
144 mm |
40 mm |
117 mm |
4 |
4 mm |
21 mm |
2.0 mm |
23.0 mm |
6 |
|
140 mm |
150 mm |
40 mm |
116 mm |
4 |
4 mm |
22 mm |
2.0 mm |
24.0 mm |
6 |
|
140 mm |
156 mm |
40 mm |
115 mm |
4 |
4 mm |
23 mm |
2.0 mm |
25.0 mm |
6 |
|
140 mm |
136 mm |
40 mm |
114 mm |
4 |
4 mm |
24 mm |
2.0 mm |
26.0 mm |
5 |
|
140 mm |
141 mm |
40 mm |
113 mm |
4 |
4 mm |
25 mm |
2.0 mm |
27.0 mm |
5 |
|
140 mm |
146 mm |
40 mm |
112 mm |
4 |
4 mm |
26 mm |
2.0 mm |
28.0 mm |
5 |
|
140 mm |
151 mm |
40 mm |
111 mm |
4 |
4 mm |
27 mm |
2.0 mm |
29.0 mm |
5 |
|
140 mm |
156 mm |
40 mm |
100 mm |
4 |
4 mm |
38 mm |
2.0 mm |
30.0 mm |
5 |
|
140 mm |
130 mm |
40 mm |
109 mm |
4 |
4 mm |
29 mm |
2.0 mm |
31.0 mm |
4 |
|
140 mm |
134 mm |
40 mm |
108 mm |
4 |
4 mm |
30 mm |
2.0 mm |
32.0 mm |
4 |
＊ All Brazed Cutter for Rod, Dowel Rod are manufactured after ordering, please e-mail us for inquiring.
