Application |
To make finger joints for wooden panels and frame structure for furniture industry. |
|---|---|
|
Cutterhead’s Material |
Iron |
|
Diameter |
100 mm |
|
Straight Bore |
1 inch, 25 mm, 30 mm |
|
Width |
25, 30, 45 mm |
|
Wing |
4Z |
|
Tooth on a knife |
2, 3 |
|
Knife Material |
Tungsten carbide |
|
Applying Machine |
Four Side Moulder, Double End Tenoner. |
|
Cutting Material |
Solid Wood |
|
Dynamically Balanced |
6000 rpm |
Information of Prudocution
Features
1. To make finger joints for wooden panels and frame structure for furniture industry.
2. T.C.T Knives make a superior durability.
Model

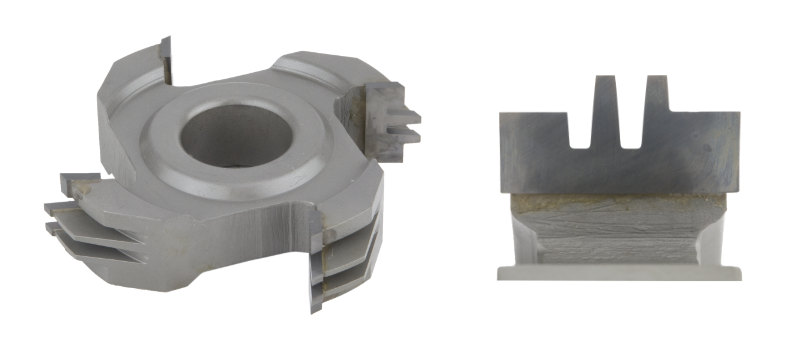

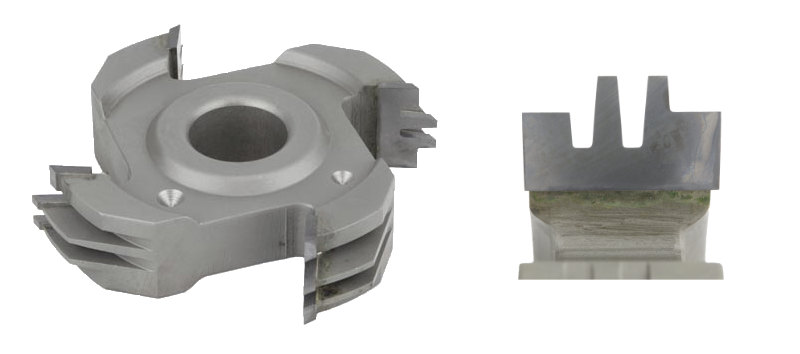

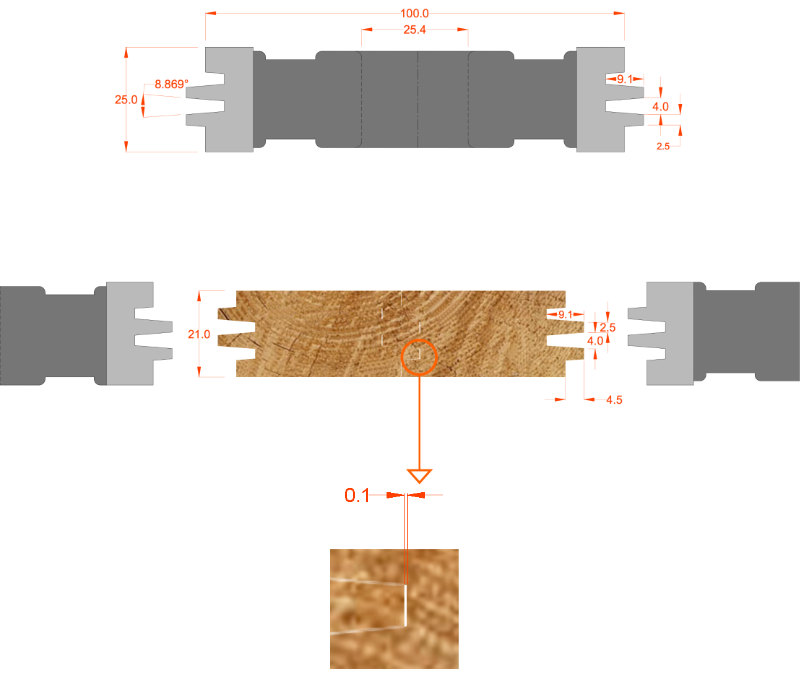

✵ Model: D25D100L25d25.4W4-2
Dimension: D 100mm, B 1";25.4mm L25mm, 4t, 2 Tooth.

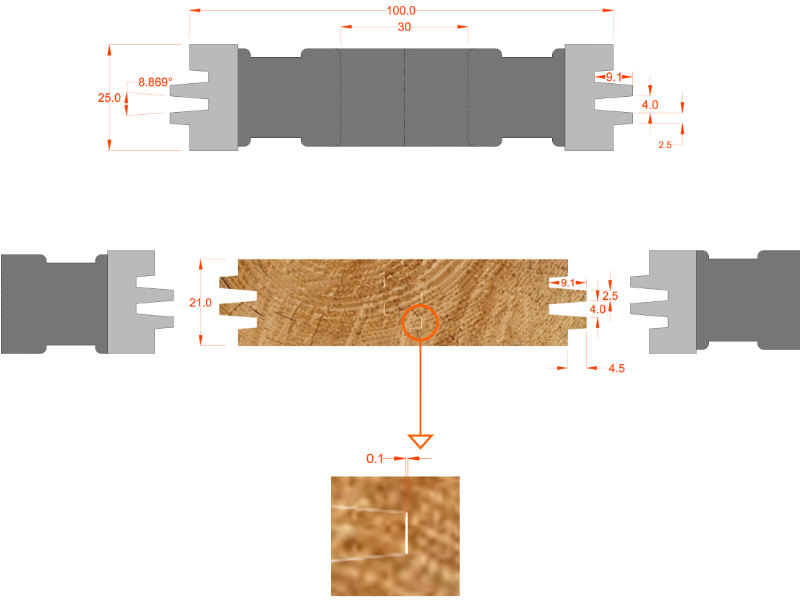

✵ Model: D25D100L25d30W4-2
Dimension: D 100mm, B 30mm L25mm, 4t, 2 Tooth.
.jpg)
✵ Model: D25D100L30d25.4W4-2
Dimension: D 100mm, B 1";25.4mm L30mm, 4t, 2 Tooth.
.jpg)
.jpg)

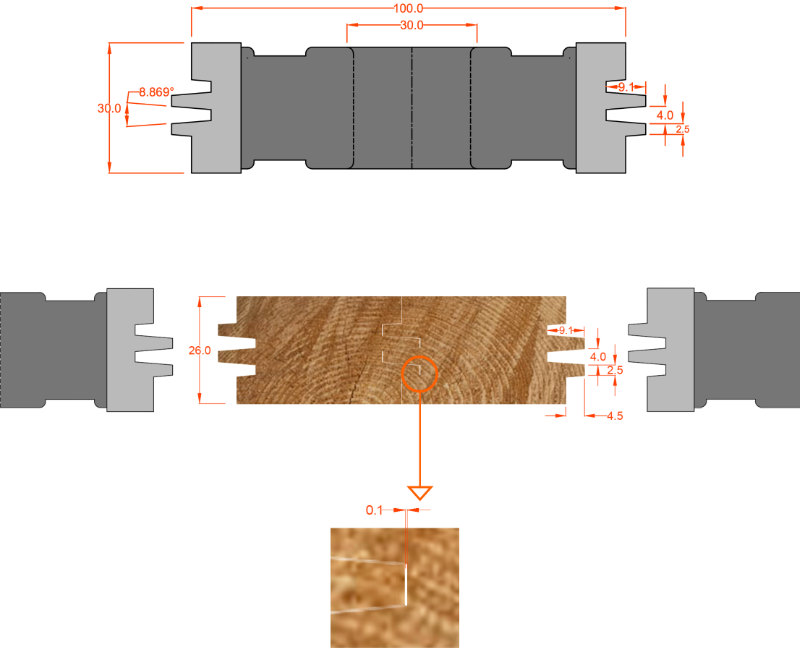

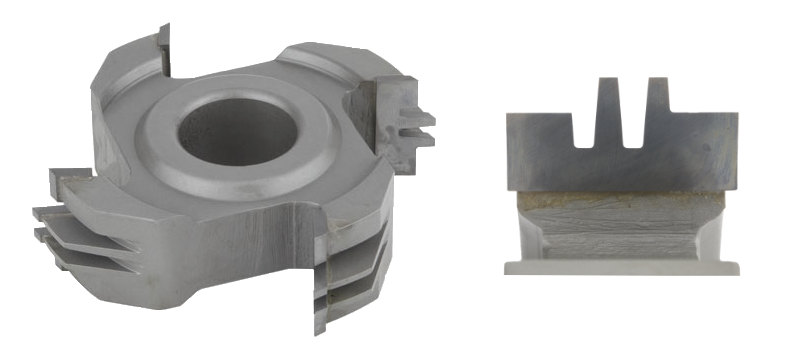

✵ Model: D25D100L30d30W4-2
Dimension: D 100mm, B 30mm L30mm, 4t, 2 Tooth.

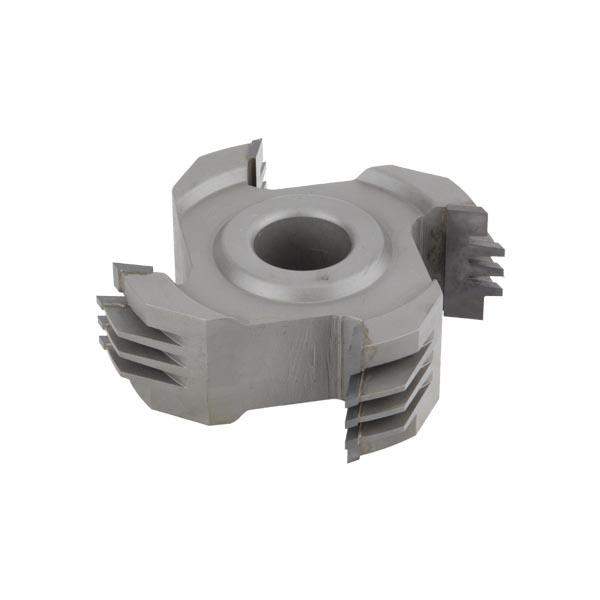

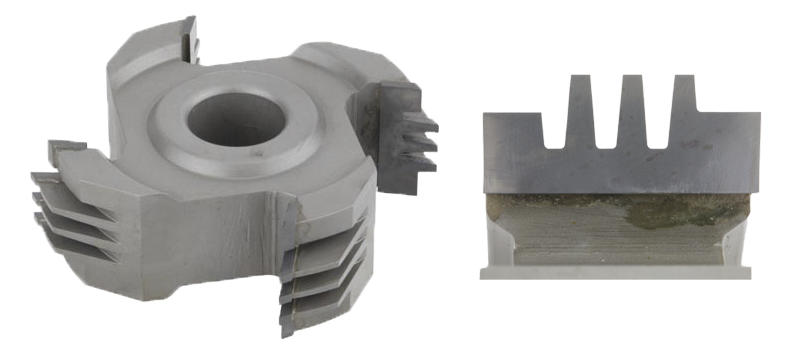

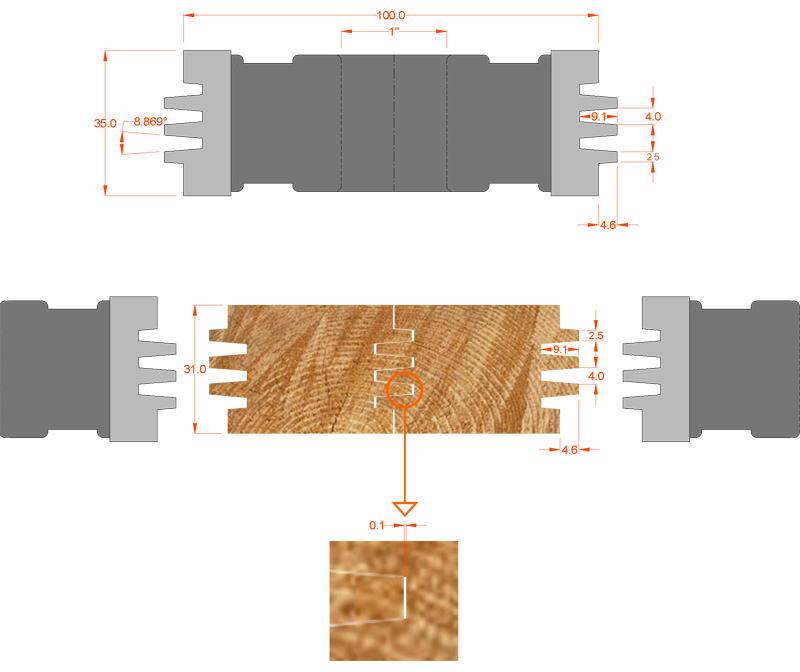

✵ Model: D25D100L35d25.4W4-3
Dimension: D 100mm, B 1";25.4mm L35mm, 4t, 3 Tooth.

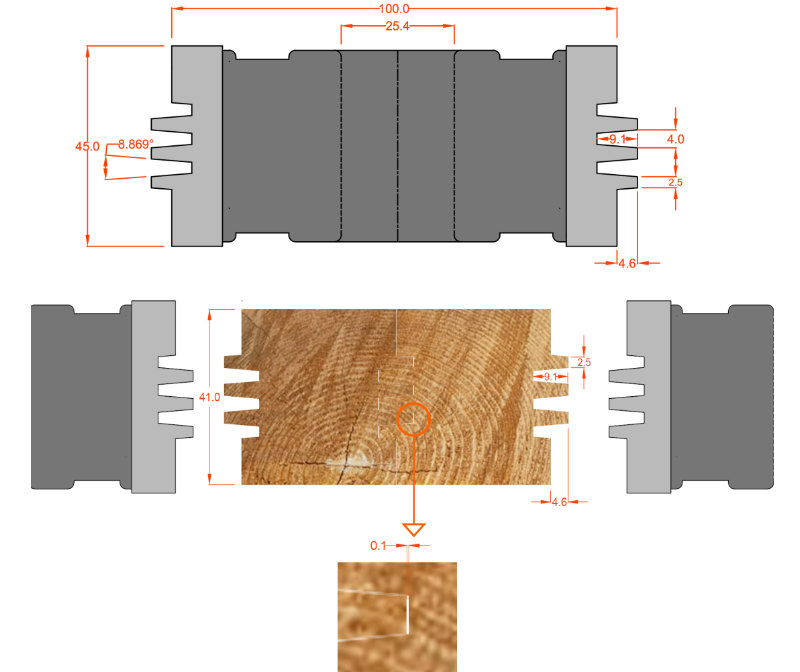

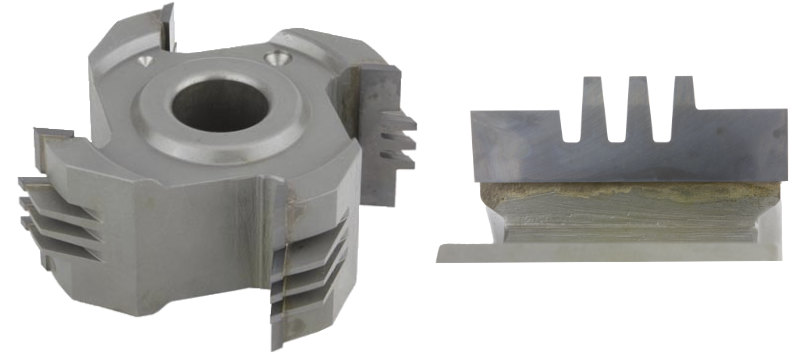

D25D100L45d25.4W4-3
Dimension: D 100mm, B 1";25.4mm L45mm, 4t, 3 Tooth.
Specification
| Model | Dia (mm) | Length (mm) | Bore (mm) | Wings | Tooth |
|---|---|---|---|---|---|
| D25D100L25d25.4W4-2 | 100 | 25 | 25.4 | 4 | 2 |
| D25D100L25d30W4-2 | 100 | 25 | 30 | 4 | 2 |
| D25D100L30d25.4W4-2 | 100 | 30 | 25.4 | 4 | 2 |
| D25D100L30d30W4-2 | 100 | 30 | 30 | 4 | 2 |
| D25D100L35d25.4W4-3 | 100 | 35 | 25.4 | 4 | 3 |
| D25D100L45d25.4W4-3 | 100 | 45 | 25.4 | 4 | 3 |
