Information Of Production

Application	finish planing and profile planing
Cutterhead’s Material	High Tensile Steel
Diameter (no knife)	122 – 188 mm
Cutting Length	50, 75, 100, 125, 155, 180, 205, 230, 280, 305 mm
Straight Bore	40, 50 mm. 1 1/2, 1 13/16, 2 1/8.
Knife Hook	4, 6, 8, 10, etc
Cutting angle	12, 20 and 12-20 degrees
Cutting material	Softwood, Hardwood, MDF, Plywood.
Dynamically balanced	6,000 or 8,000 rpm
Applying machine	Moulder, Spindle Shaper.

＊ All the Hydro Planing Cutterhead is manufactured after ordering, please e-mail us for inquiring or ordering.

Features

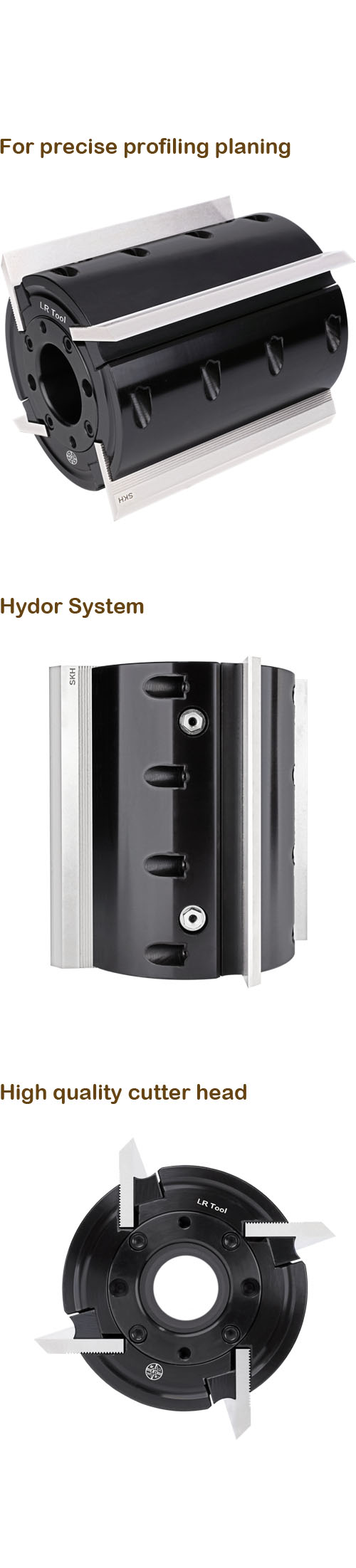

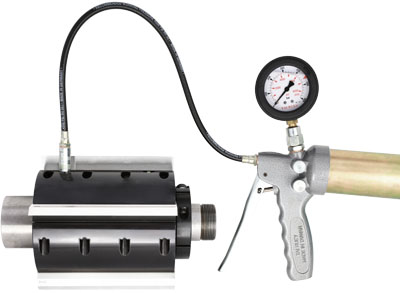

1. Hydro system can eliminate the tolerance between bore and spindle.

2. Corrugated grooves make positioning work easier.

3. Due to the High Tensile Steel’s feature and special processing flow, the precision of bore and diameter will maintain same quality though long-term using. Ether repeatedly replacing knives or repeatedly assembling and disassembling from machine will not affect bore and diameter’s precision.

4. Three kinds of Hydro Corrugated Knife Cutterhead with different cutting angle, 12 degrees, 20 degrees and 12 & 20 degrees. We also accept custom-made degree.

Knife

HSS Corrugated Back Knife

Length	Width	Height	Curragated Groove Degree
50 mm	50 mm	8 mm	60 Degrees
75 mm	50 mm	8 mm	60 Degrees
100 mm	50 mm	8 mm	60 Degrees
125 mm	50 mm	8 mm	60 Degrees
155 mm	50 mm	8 mm	60 Degrees
180 mm	50 mm	8 mm	60 Degrees
205 mm	50 mm	8 mm	60 Degrees
230 mm	50 mm	8 mm	60 Degrees
255 mm	50 mm	8 mm	60 Degrees
280 mm	50 mm	8 mm	60 Degrees
305 mm	50 mm	8 mm	60 Degrees

＊Carbide Inlay Knives are custom-made.

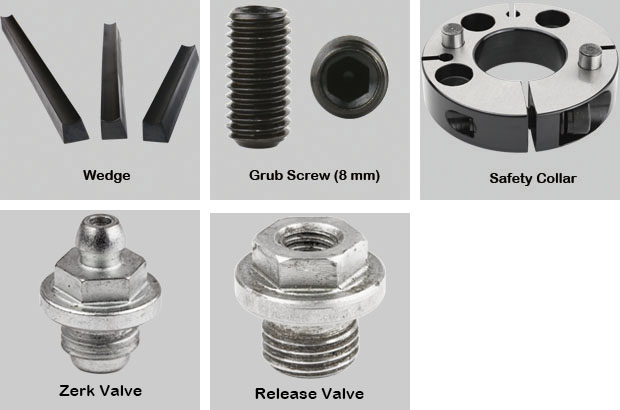

Accessory
