Hydro System

Information Of Production

Hydro System Safety Pressure

400 BAR

Application

pre-planing or heavy cutting

Cutterhead’s Material

Aluminum alloy

Diameter

125, 150, 163, 180, 203 mm

Cutting Length

50 – 355 mm

Bore

40, 50 mm. 1 13/16, 2 1/8 in.

Insert Knife

Square Tungsten Carbide Insert Knife

Insert Knife Dimension

14 mm x 14 mm x 2.0 mm (30-degree bevel) or 15 mm x 15 mm x 2.5 mm (37-degree bevel).

Insert Knife Row

6, 8, 10 rows

Cutting Angle

spiral angle

Suitable Machine

Mouler, Four Side Moulder, Multi-Side Moulder, Spindle Shaper.

Cutting Material: solid wood, MDF, plywood etc

Cutting Material

solid wood, MDF, plywood etc

Dynamically Balanced

6,000 or 8,000 rpm

* All The Hydro Aluminum Alloy Spiral Cutterheads are manufactured after ordering, please e-mail us for inquiring.

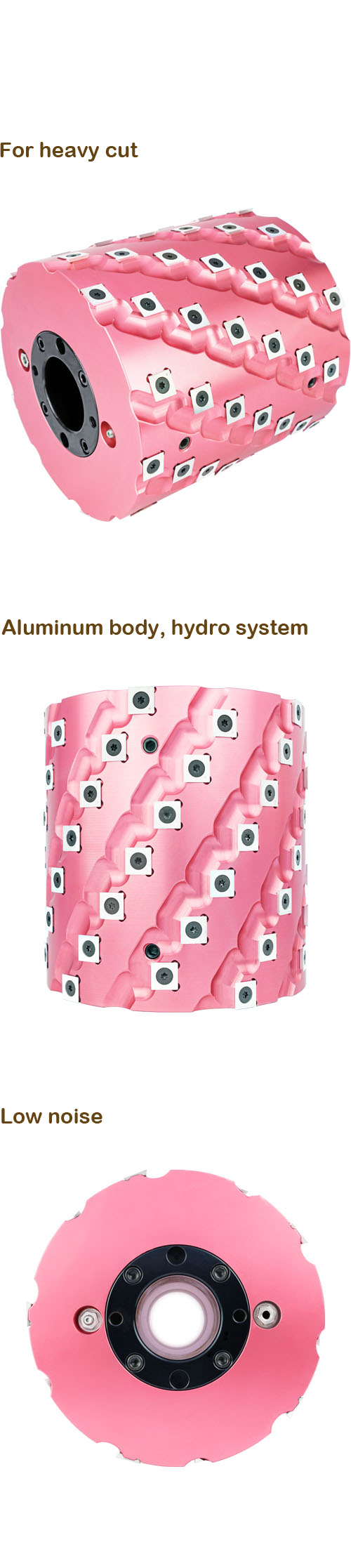

Features

1. Comparing with steel body, Aluminum Alloy Material further lighten the weight of cutterhead. Due to this feature, the life span of spindle, bearing is longer and electronic consumption is further reduced.



2. The Hydro System can eliminate the tolerance between bore and spindle to do more acurrate cut.

high precision hydro system can eliminate the tolerance between bore and spindle.

3. Spiral cutterheads are suitable for high production moulder.

4. Since the cutting resistance will be distributed to each small insert knife, the cutter will continuously cutting workpieces by point by point. Thus, the Spiral design can substantially enhance feeding speed and reduce tear-out.

5. LR-Tool’s special spiral step shape grooves have remarkably chip-throwing ability that can prevent workpice’s surface hurt by thrown chips. Moreover, the special grooves can significantly reduce noise.

6. LR Tool always values the quility of our cutterhead. The spiral cutterhead are machined from High Tensile Steel. It makes cutterhead’s body enduringly maintaining accuracy.

7. The square insert knives of 14 mm x 14 mm x 2.0 mm (30-degree bevel) are suitable for pre-planing.

8. The square insert knives of 15 mm x 15 mm x 2.5 mm (37-degree bevel) are suitable for heavy cutting.

9. If an insert nicked, just replace it with little cost.

Insert Knife

Depending on workpiece’s material, LR Tool provide 2 kinds of material insert knife. First is KCR08 for normal hardwood. Next is the SMG02, suitable for extremely hard or man‐made material like plywood or MDF.

Size

Material

14 mm x 14 mm x 2.0 mm (30-degree bevel)

Tungsten Carbide (kcr08)

14 mm x 14 mm x 2.0 mm (30-degree bevel)

Tungsten Carbide (smg02)

15 mm x 15 mm x 2.5 mm (37-degree bevel)

Tungsten Carbide (kcr08)

15 mm x 15 mm x 2.5 mm (37-degree bevel)

Tungsten Carbide (smg02)

Accessory
