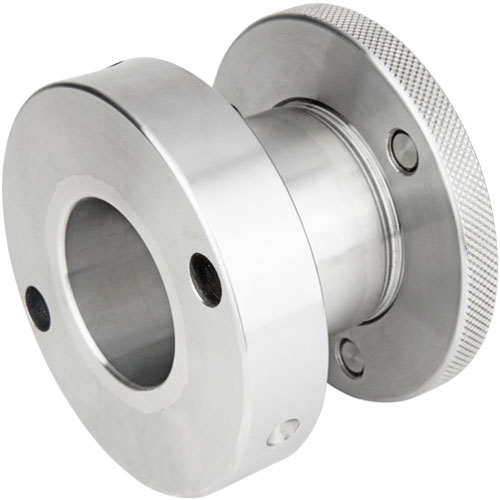

Hydro sleeve can eliminate the tolerance between the bore of cutter and diameter to achieve more concentric cutting.
All Hydro sleeves are custom-made. please e-mail us to inquire or ordering.
About Hydro Sleeve

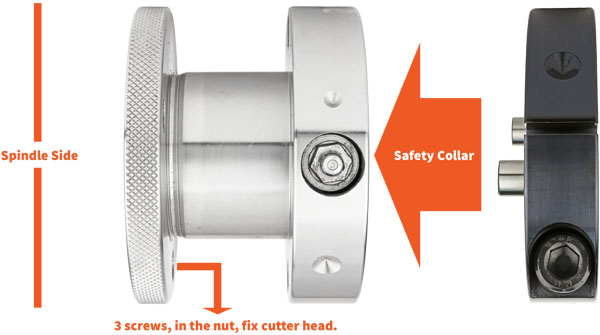

How to use hydro sleeve.
- Put cutter into sleeves.
- Lock the nut.
- Tighten the 3-screws that in the nut.
- Put the set of cutter into spindle.
- Use High Pressure Grease Gun, injecting the pressure of 400 bar.
- Put the Safety Collar into spindle and fasten it.

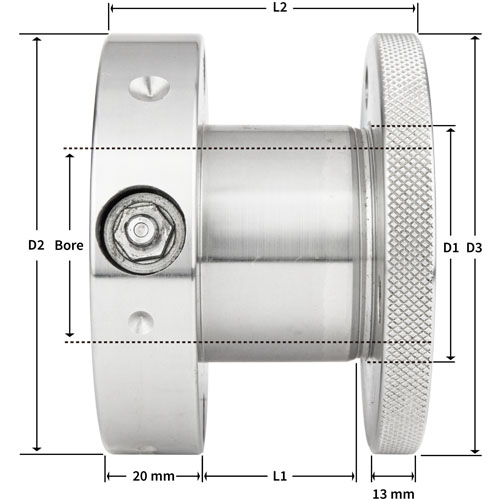

The specification below may in stock
The dimensions in the specification are often ordered. We may have this items in stock.
|
Item |
Bore |
D1 |
D2 |
D3 |
L1 |
L2 |
Rotation |
|---|---|---|---|---|---|---|---|
|
Type 1 |
40 mm |
50 mm |
88 mm |
88 mm |
40 mm |
75.5 mm |
|
|
Type 2 |
40 mm |
50 mm |
88 mm |
88 mm |
155 mm |
190 mm |
|
|
Type 3 |
40 mm |
50 mm |
88 mm |
88 mm |
156 mm |
191 mm |
|
|
Type 4 |
50 mm |
60 mm |
98 mm |
98 mm |
50 mm |
85 mm |
|
|
Type 5 |
46 mm |
56 mm |
84 mm |
84 mm |
30 mm |
65.5 mm |
|
|
Type 6 |
30 mm |
40 mm |
78 mm |
78 mm |
61.25 mm |
96.75 mm |
|
|
Type 7 |
54 mm |
64 mm |
102 mm |
102 mm |
30 mm |
65 mm |
|
|
Type 8 |
46 mm |
56 mm |
84 mm |
84 mm |
110 mm |
145 mm |
|
|
Type 9 |
40 mm |
50 mm |
88 mm |
88 mm |
80 mm |
115 mm |
|
|
Type 10 |
50 mm |
70 mm |
112 mm |
112 mm |
125 mm |
160.5 mm |
CW or CCW |
|
Type 11 |
40 mm |
50 mm |
88 mm |
88 mm |
80 mm |
115.5 mm |
|
|
Type 12 |
40 mm |
50 mm |
88 mm |
88 mm |
70 mm |
106 mm |
|
|
Type 13 |
40 mm |
50 mm |
88 mm |
88 mm |
100 mm |
135 mm |
|
|
Type 14 |
50 mm |
70 mm |
112 mm |
112 mm |
50 mm |
85.5 mm |
CW or CCW |
|
Type 15 |
50 mm |
70 mm |
112 mm |
112 mm |
75 mm |
110 mm |
CW or CCW |
|
Type 16 |
40 mm |
50 mm |
88 mm |
88 mm |
30 mm |
66 mm |
|
|
Type 17 |
50 mm |
60 mm |
98 mm |
98 mm |
30 mm |
65 mm |
|
|
Type 18 |
50 mm |
60 mm |
98 mm |
98 mm |
100 mm |
135 mm |
|
|
Type 19 |
50 mm |
70 mm |
112 mm |
112 mm |
110 mm |
156 mm |
CW or CCW |
|
Type 20 |
50 mm |
60 mm |
98 mm |
98 mm |
125 mm |
160 mm |
|
|
Type 21 |
50 mm |
70 mm |
112 mm |
112 mm |
110 mm |
136 mm |
|
