Application |
finish cut or profile cut |
|---|---|
|
Cutterhead’s Material |
High Tensile Steel |
|
Diameter |
122, 127 mm |
|
Cutting Length |
50 - 305 mm |
|
Straight Bore |
40, 50 mm. 1 1/2, 1 13/16, 2 1/8 in |
|
Knife Hooks |
4 |
|
Knife Size |
width 50 mm. thick 8 mm (corrugated back) |
|
Cutting Angle |
Straight angle |
|
Hook |
12, 20, 12 & 20 degrees |
|
Applying Machine |
Four Side Moulder |
|
Cutting Material |
solid wood |
|
Dynamically Balanced |
6,000 or 8,000 rpm |
Information Of Production
Specification

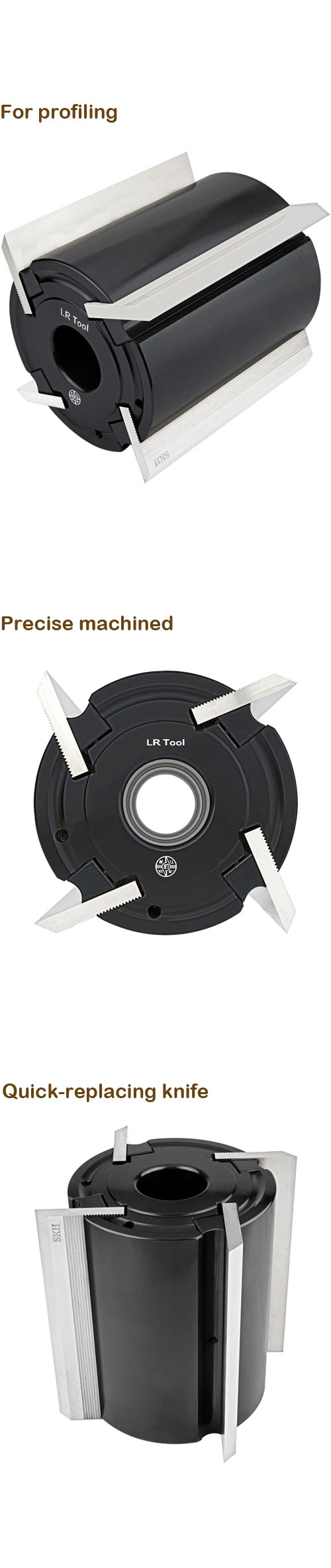

Quick-Replace Corrugated Knife Cutter Head (20-Degree hooks)
|
Model |
Diameter (mm) |
Length (mm) |
Bore (mm) |
Wing |
|---|---|---|---|---|
|
A10D122L2d40W4-20 |
122 |
50 |
40 |
4T |
|
A10D122L3d40W4-20 |
122 |
75 |
40 |
4T |
|
A10D122L4d40W4-20 |
122 |
100 |
40 |
4T |
|
A10D122L5d40W4-20 |
122 |
125 |
40 |
4T |
|
A10D122L6d40W4-20 |
122 |
155 |
40 |
4T |
|
A10D122L7d40W4-20 |
122 |
180 |
40 |
4T |
|
A10D122L8d40W4-20 |
122 |
205 |
40 |
4T |
|
A10D122L9d40W4-20 |
122 |
230 |
40 |
4T |
|
A10D122L10d40W4-20 |
122 |
255 |
40 |
4T |
|
A10D122L12d40W4-20 |
122 |
305 |
40 |
4T |
|
A10D122L2d46W4-20 |
122 |
50 |
46 |
4T |
|
A10D122L3d46W4-20 |
122 |
75 |
46 |
4T |
|
A10D122L4d46W4-20 |
122 |
100 |
46 |
4T |
|
A10D122L5d46W4-20 |
122 |
125 |
46 |
4T |
|
A10D122L6d46W4-20 |
122 |
155 |
46 |
4T |
|
A10D122L7d46W4-20 |
122 |
180 |
46 |
4T |
|
A10D122L8d46W4-20 |
122 |
205 |
46 |
4T |
|
A10D122L9d46W4-20 |
122 |
230 |
46 |
4T |
|
A10D122L10d46W4-20 |
122 |
255 |
46 |
4T |
|
A10D122L12d46W4-20 |
122 |
305 |
46 |
4T |
|
A10D127L2d50W4-20 |
127 |
50 |
50 |
4T |
|
A10D127L3d50W4-20 |
127 |
75 |
50 |
4T |
|
A10D127L4d50W4-20 |
127 |
100 |
50 |
4T |
|
A10D127L5d50W4-20 |
127 |
125 |
50 |
4T |
|
A10D127L6d50W4-20 |
127 |
155 |
50 |
4T |
|
A10D127L7d50W4-20 |
127 |
180 |
50 |
4T |
|
A10D127L8d50W4-20 |
127 |
205 |
50 |
4T |
|
A10D127L9d50W4-20 |
127 |
230 |
50 |
4T |
|
A10D127L10d50W4-20 |
127 |
255 |
50 |
4T |
|
A10D127L12d50W4-20 |
127 |
305 |
50 |
4T |
Quick-Replace Corrugated Knife Cutter Head (12 & 20 - Degree hooks)
|
Model |
Diameter (mm) |
Length (mm) |
Bore (mm) |
Wing |
|---|---|---|---|---|
|
A10D122L2d40W4-12/20 |
122 |
50 |
40 |
4T |
|
A10D122L3d40W4-12/20 |
122 |
75 |
40 |
4T |
|
A10D122L4d40W4-12/20 |
122 |
100 |
40 |
4T |
|
A10D122L5d40W4-12/20 |
122 |
125 |
40 |
4T |
|
A10D122L6d40W4-12/20 |
122 |
155 |
40 |
4T |
|
A10D122L7d40W4-12/20 |
122 |
180 |
40 |
4T |
|
A10D122L8d40W4-12/20 |
122 |
205 |
40 |
4T |
|
A10D122L9d40W4-12/20 |
122 |
230 |
40 |
4T |
|
A10D122L10d40W4-12/20 |
122 |
255 |
40 |
4T |
|
A10D122L12d40W4-12/20 |
122 |
305 |
40 |
4T |
|
A10D122L2d46W4-12/20 |
122 |
50 |
46 |
4T |
|
A10D122L3d46W4-12/20 |
122 |
75 |
46 |
4T |
|
A10D122L4d46W4-12/20 |
122 |
100 |
46 |
4T |
|
A10D122L5d46W4-12/20 |
122 |
125 |
46 |
4T |
|
A10D122L6d46W4-12/20 |
122 |
155 |
46 |
4T |
|
A10D122L7d46W4-12/20 |
122 |
180 |
46 |
4T |
|
A10D122L8d46W4-12/20 |
122 |
205 |
46 |
4T |
|
A10D122L9d46W4-12/20 |
122 |
230 |
46 |
4T |
|
A10D122L10d46W4-12/20 |
122 |
255 |
46 |
4T |
|
A10D122L12d46W4-12/20 |
122 |
305 |
46 |
4T |
|
A10D127L2d50W4-12/20 |
127 |
50 |
50 |
4T |
|
A10D127L3d50W4-12/20 |
127 |
75 |
50 |
4T |
|
A10D127L4d50W4-12/20 |
127 |
100 |
50 |
4T |
|
A10D127L5d50W4-12/20 |
127 |
125 |
50 |
4T |
|
A10D127L6d50W4-12/20 |
127 |
155 |
50 |
4T |
|
A10D127L7d50W4-12/20 |
127 |
180 |
50 |
4T |
|
A10D127L8d50W4-12/20 |
127 |
205 |
50 |
4T |
|
A10D127L9d50W4-12/20 |
127 |
230 |
50 |
4T |
|
A10D127L10d50W4-12/20 |
127 |
255 |
50 |
4T |
|
A10D127L12d50W4-12/20 |
127 |
305 |
50 |
4T |
Knife
HSS Corrugated Back Knife
◉ Costomization: 1. TCT inlaid knife. 2. Other width (50, 60, 70mm)
|
Model |
Length |
Width |
Thickness |
|---|---|---|---|
|
K50HSL 50W50T8 |
50 |
50 |
8 |
|
K50HSL 60W50T8 |
60 |
50 |
8 |
|
K50HSL 75W50T8 |
75 |
50 |
8 |
|
K50HSL100W50T8 |
100 |
50 |
8 |
|
K50HSL125W50T8 |
125 |
50 |
8 |
|
K50HSL130W50T8 |
130 |
50 |
8 |
|
K50HSL150W50T8 |
150 |
50 |
8 |
|
K50HSL155W50T8 |
155 |
50 |
8 |
|
K50HSL180W50T8 |
180 |
50 |
8 |
|
K50HSL205W50T8 |
205 |
50 |
8 |
|
K50HSL230W50T8 |
230 |
50 |
8 |
|
K50HSL255W50T8 |
255 |
50 |
8 |
|
K50HSL280W50T8 |
280 |
50 |
8 |
|
K50HSL305W50T8 |
305 |
50 |
8 |
|
K50HSL355W50T8 |
355 |
50 |
8 |
|
K50HSL610W50T8 |
610 |
50 |
8 |
|
K50HSL635W50T8 |
635 |
50 |
8 |
